COMPONENTS
Doors


CABINS

  • Cabins for passenger lifts

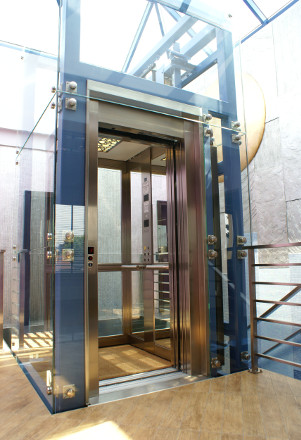

    • Standard TMC cabins / GREEN LIFT® and GLT lifts
      • TMC cabins

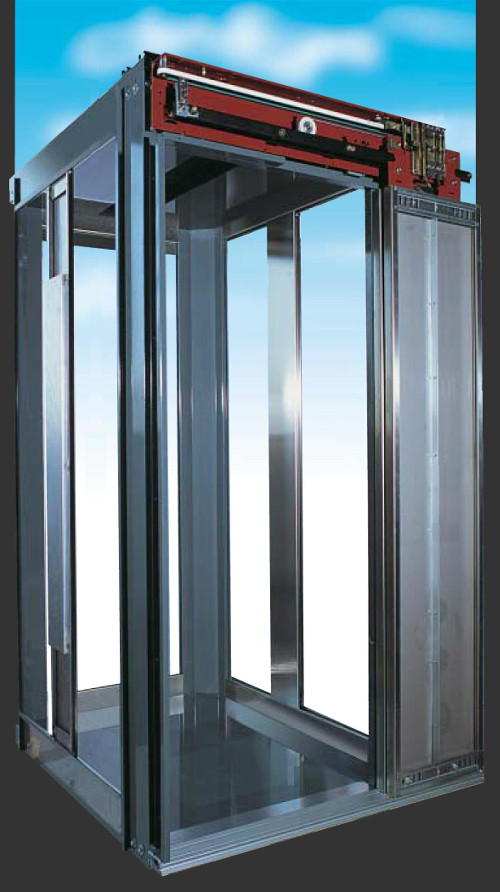

    • Standard cabins have one or two entrances on opposite sides (in line 180°). The cabin’s module consists of the floor, ceiling and four corners. The side panels follow the customer’s requirements. The mirror can fill an entire wall or only a part above the hand rail. The hand rail is made of stainless steel tubes with a diameter of 30 mm. The floor covering is available in a wide range of colors and materials in several versions as: coconut mat or non-slip flooring. Push-button panels in cabin and at stops are made of stainless steel. The buttons signal disposals and have Braille’s markings for the blind persons. The panel in cabin also includes overload and floor indicator and emergency lighting. Call for help button activates the siren signal and establishes voice contact to the support center. The modular design facilitates the subsequent repair and modernization.

    • Sample configurations of the TMC cabins

    TMC cabins

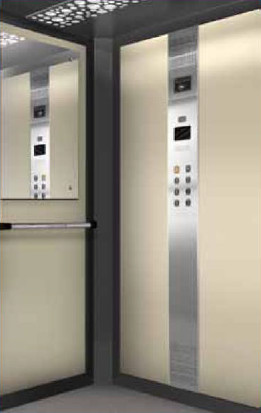

    Cabin:
    Walls:
    Structure:
    Ceiling:
    Floor:
    Glass:

    K-1
    Laminate Beige 001
    Polimod dark grey
    Irregular holes
    PVC light grey 501
    One wall
    TMC cabins

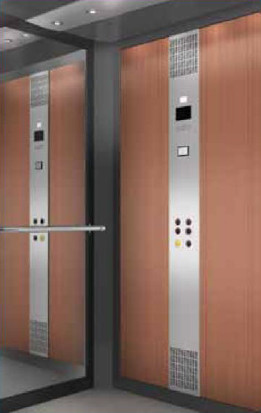

    Cabin:
    Walls:
    Structure:
    Ceiling:
    Floor:
    Glass:

    K-2
    Laminate cherry 006
    Polimod dark grey
    Spotlights LED
    PVC light grey 501
    Whole wall
    TMC cabins
    Cabin:
    Walls:
    Structure:
    Ceiling:
    Floor:
    Glass:

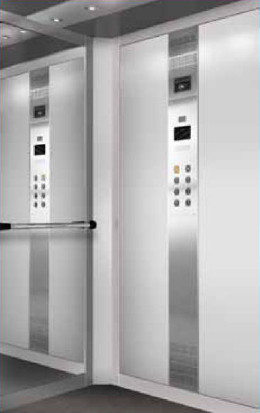

    K-3
    Laminate white 005
    Stainless steel INOX
    Spotlights LED
    PVC dark grey 502
    Whole wall
    TMC cabins
    Cabin:
    Walls:
    Structure:
    Ceiling:
    Floor:
    Glass:

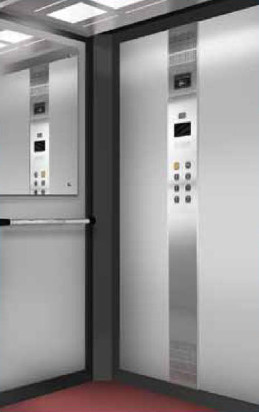

    K-4
    Polimod light grey 204
    Polimod dark grey
    Neon LED
    Red coconut 602
    One wall

    TMC cabins
    Cabin:
    Walls:
    Structure:
    Ceiling:
    Floor:
    Glass:

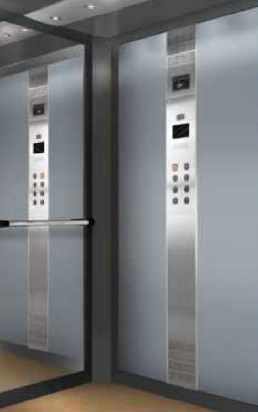

    K-5
    Polimod light blue 203
    Polimod dark grey
    Spotlights LED
    Natural coconut 601
    Whole wall

    TMC cabins
    Cabin:
    Walls:
    Structure:
    Ceiling:
    Floor:
    Glass:

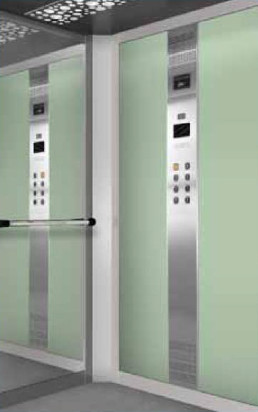

    K-6
    Polimod light green 202
    Stainless steel INOX
    Irregular holes
    Grey 701
    Whole wall

    TMC cabins

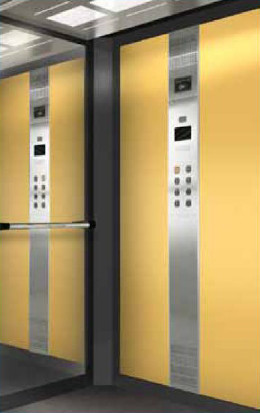

    Cabin:
    Walls:
    Structure:
    Ceiling:
    Floor:
    Glass:

    K-7
    Laminate yellow 112
    Polimod dark grey
    Neon LED
    PVC dark grey 502
    Whole wall

    TMC cabins
    Cabin:
    Walls:
    Structure:
    Ceiling:
    Floor:
    Glass:

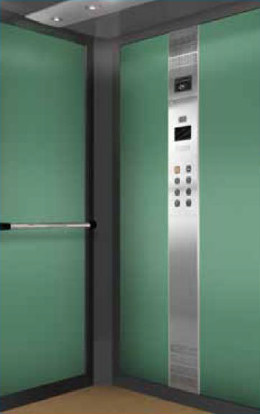

    K-8
    Laminate water green 110
    Polimod dark grey
    Spotlights LED
    Kokos naturalny 601
    none

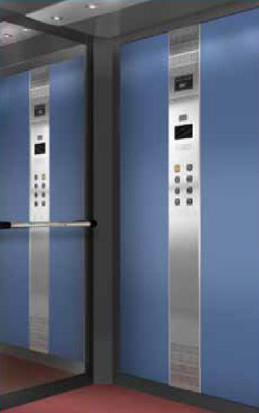

    TMC cabins
    Cabin:
    Walls:
    Structure:
    Ceiling:
    Floor:
    Glass:

    K-9
    Laminat blue 113
    Polimod dark grey
    Spotlights LED
    Red coconut 602
    Whole wall

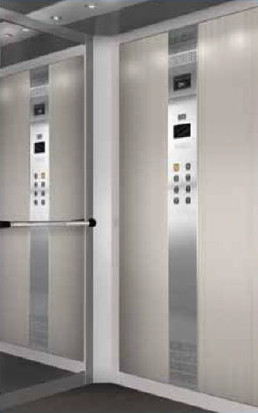

    TMC cabins
    Cabin:
    Walls:
    Structure:
    Ceiling:
    Floor:
    Glass:

    K-10
    L. whitened durmast 103
    Stainless steel INOX
    Spotlights LED
    PVC dark grey 502
    Whole wall
    TMC cabins
    Cabin:
    Walls:

    Structure:
    Ceiling:
    Floor:
    Glass:

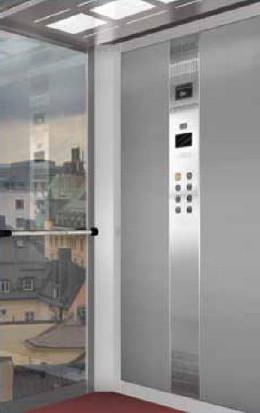

    K-11 panoramic
    Laminate Al. pearl 109
    Glass 801
    Stainless steel INOX
    Neon LED
    Red coconut 602
    Whole lateral wall

    TMC cabins

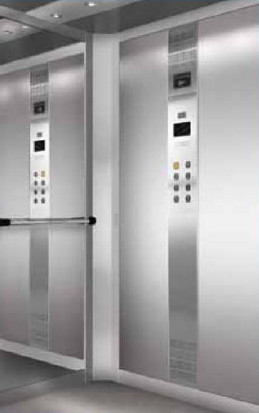

    Cabin:
    Walls:
    Structure:
    Ceiling:
    Floor:
    Glass:

    K-12
    Stain. steel INOX 301
    Stainless steel INOX
    Spotlights LED
    PVC light grey 501
    Whole wall

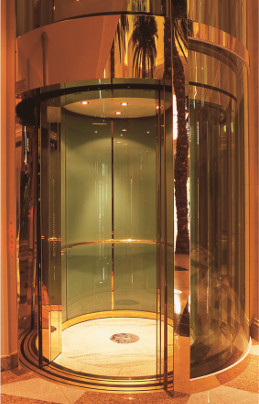

  • Non-standard cabins

    Non-standard cabins are made strictly according to customer's wish. They can have one, two entrances on the opposite sides (in line 180°) or adjacent walls (90° angled). Sometimes they have even 3 entrances. The walls are made of very different materials: wood, laminates, painted steel or stainless steel and glass in panoramic cabins.
    passenger cabin passenger cabin passenger cabin


  • Cabins for Home Lift®

    Home Lift® is equipped with a standard HL cabin, which is supplied with one, two or even three entrances. They have a very wide range of finishes of walls, ceilings and floors.

    Sample configurations of the Home Lift® cabins

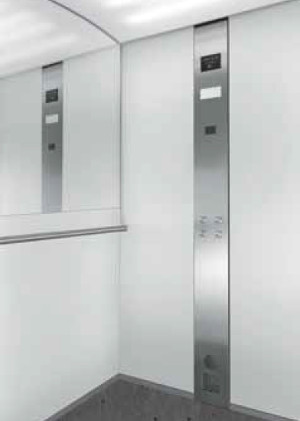

    Cabin Home Lift
    Cabin: H1 -
    Walls:
    Ceiling:
    Floor:

    114-504 PEARL
    White – L. blue – M. finish
    Neon
    Marmoleum - Graphite

    Cabin Home Lift

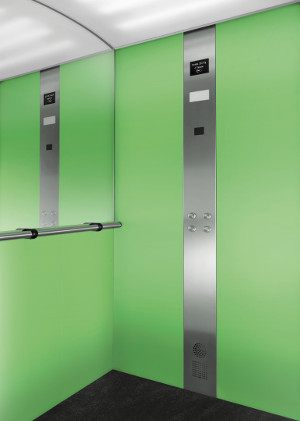

    Cabin: H2 -
    Walls:
    Ceiling:
    Floor:

    118-503 DRAGONFLY
    Acid Green – Matt finish
    Neon
    Marmoleum - Black

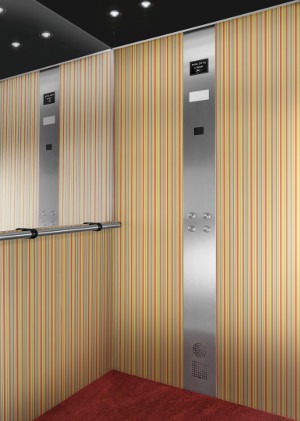

    Cabin Home Lift
    Cabin: H3 -
    Walls:
    Ceiling:
    Floor:

    122-507 PARADE
    Fabric matt
    Spot Led
    Marmoleum - Red

    Cabin Home Lift
    Cabin: H4 -
    Walls:
    Ceiling:
    Floor:

    123-503 VENICE
    Brushed silver - Satin finish
    Neon - flowers
    Marmoleum - Black

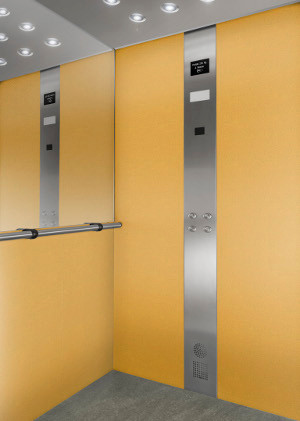

    Cabin Home Lift
    Cabin: H5 -
    Walls:
    Ceiling:
    Floor:

    124-508 DAISY
    Gold satin
    Spotlights
    Marmoleum - Stone

    Cabin Home Lift

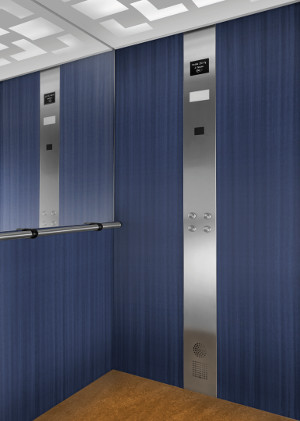

    Cabin: H6 -
    Walls:
    Ceiling:
    Floor:

    126-506 VILLA
    Oak matt
    Neon Domino
    M. Golden Sunset

    Cabin Home Lift

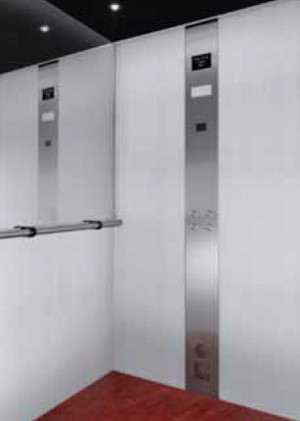

    Cabin: H7 -
    Walls:
    Ceiling:
    Floor:

    127-507 ROYAL
    Mirra zebra suede
    Spot Led
    Marmoleum - Red

    Cabin Home Lift

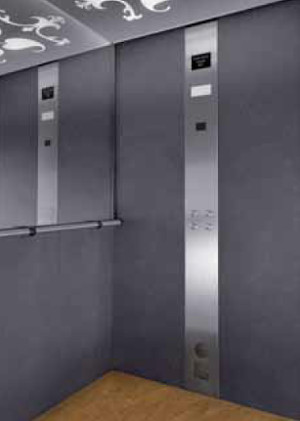

    Cabin: H8 -
    Walls:
    Ceiling:
    Floor:

    125-506 VOGUE
    Manganite - Glossy finish
    Neon - flowers
    M. Golden Sunset

    Cabin Home Lift
    Cabin: H9 -
    Walls:
    Ceiling:
    Floor:

    409-503 GLIM
    Skinplate Fir - Woods
    Neon
    Marmoleum - Black

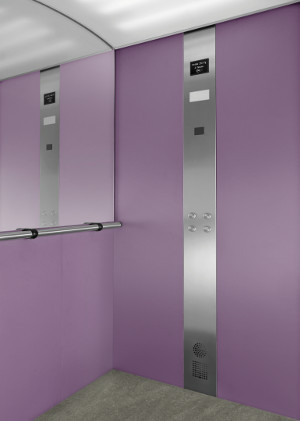

    Cabin Home Lift
    Cabin: H10 -
    Walls:
    Ceiling:
    Floor:

    407-508 ROMANCE
    Purple
    Neon
    Marmoleum - Stone

    Cabin Home Lift

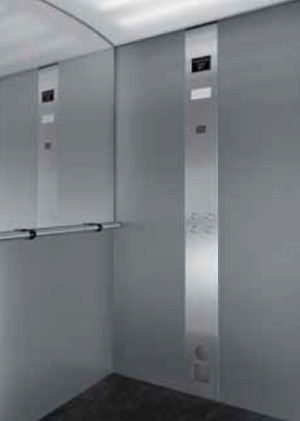

    Cabin: H11 -
    Walls:
    Ceiling:
    Floor:

    413-503 QUICK
    Dark Grey
    Neon
    Marmoleum - Black

    Cabin Home Lift

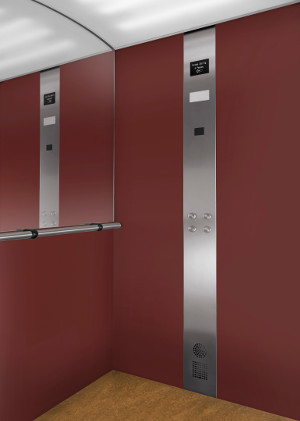

    Cabin: H12 -
    Walls:
    Ceiling:
    Floor:

    406-506 GRANADA
    Red
    Neon
    M. Golden Sunset

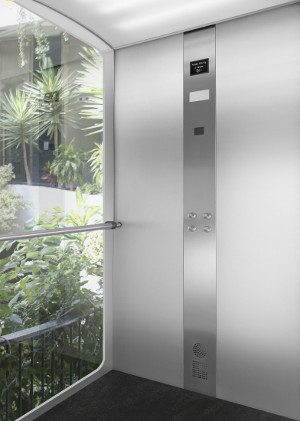

    PANORAMIC CABINS

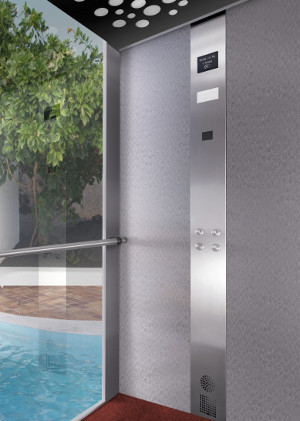

    Panoramic cabin
    Cabin: H13-
    Walls:
    Ceiling:
    Floor:

    301-507 PANORAM.
    Stainless Steel
    Neon Bubble
    Marmoleum - Red

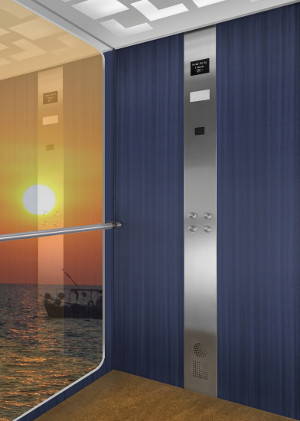

    Panoramic cabin
    Cabin: H14-
    Walls:
    Ceiling:
    Floor:

    125-506 VOGUE PAN.
    Manganite / satin
    Neon Domino
    M. Golden Sunset
    Panoramic cabin
    Cabin: H15-
    Walls:
    Ceiling:
    Floor:

    114-504 PEARL PAN.
    White – L. blue – M. finish
    Neon
    Marmoleum - Graphite

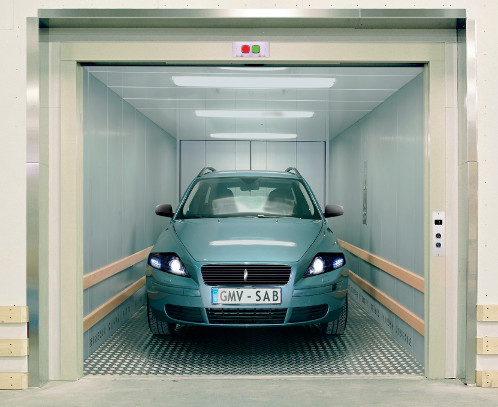

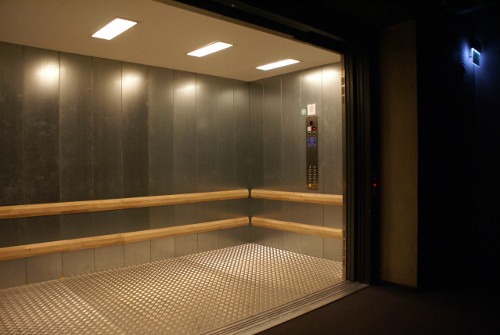

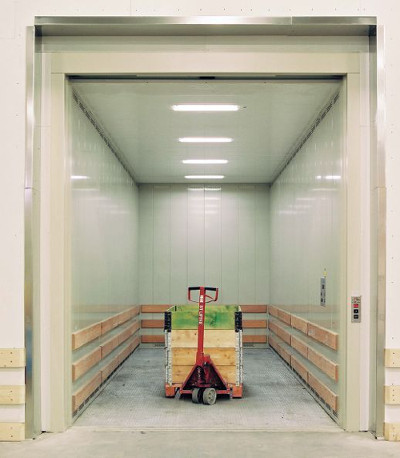

  • Cabins for goods-passenger and vehicle lifts

    are solid construction with durable floors which carry heavy loads and high unit pressure. They are suitable for loading with fork-lifts and pallet trucks and for entry of cars in case of vehicle lifts.
    Cabin goods-passenger Cabin goods-passenger Cabin vehicle
